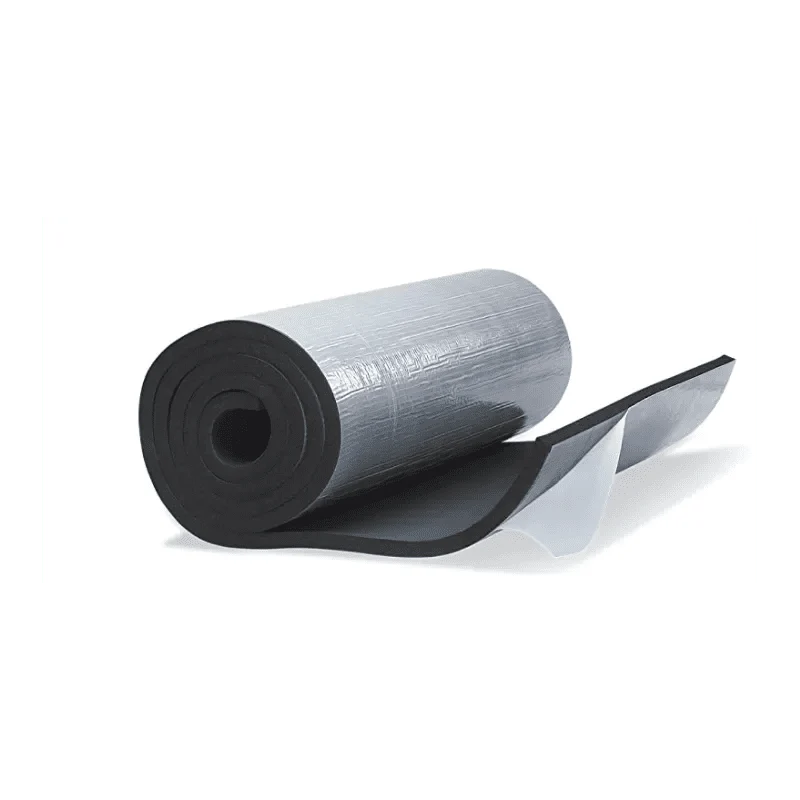

Insulation Armaflex AF 19 mm – self-adhesive roll 6 m², for campervans and motorhomes

Name: Insulation Armaflex AF 19 mm – self-adhesive roll 6 m², for campervans and motorhomes
Brand: ARMACELL
SKU: AF19
Price: 127.00 GBP
Availability: InStock

Closed-cell elastomeric foam, λ 0.033 W/(m·K), vapour barrier built in. 1 m wide, high-temperature adhesive backing.

£127⁰⁰

Tax included Shipping calculated at checkout.

or 3 × £42.33 interest-free with Klarna

Free delivery from £399
30-day returns
Secure payment

Secure payment
30-day returns

100% secure payment

Need help choosing?

A technician can help you via chat or WhatsApp.

Live chat WhatsApp

Product advantages

Closed-cell foam with a built-in vapour barrier — condensation cannot form inside the panel, where it would rust the bodywork
λ 0.033 W/(m·K) — the figure professional converters work with: more insulation per millimetre, less interior space lost
Self-adhesive, high-temperature backing — holds on panels up to 85 °C, so it stays put on sun-facing walls
Flexible enough to follow the bodywork — it wraps ribs and curves, and takes the drumming out of the panels while you drive
Microban® treated, EN 14304 — mould-resistant, with fire behaviour suited to vehicle conversions

Additional information

Package content

1 self-adhesive Armaflex AF roll, 6 m × 1 m, 19 mm thick (6 m²)

What you will need: Armaflex AF tape to seal the joints, Armaflex Cleaner to degrease the panels before laying, a cutter and a roller.

Choosing the right thickness

6 mm — floors under a subfloor, wheel arches, and any panel where height matters more than performance.
10 mm — the usual compromise for walls and the inside of ribs.
19 mm — walls and ceiling on a van used in winter; the thickness most full conversions settle on.
25 mm — maximum insulation, where you can afford the lost centimetres: ceiling, cab bulkhead.

Count the surface to cover, then add about 10 % for cuts. A full L2H2 van takes roughly 30 m² of foam, plus one roll of AF tape per 5 m² to seal the joints.

Frequently asked questions

Do I still need a vapour barrier? No. Armaflex AF is its own vapour barrier, provided every joint is sealed with AF tape and the foam is laid directly on the metal, with no air gap behind it.

Can I lay it over an existing insulation? It is made to go on bare, clean, dry metal. Any air trapped between two layers is where condensation will form.

How much do I need for my van? About 20 m² for an L1H1, 30 m² for an L2H2 and 40 m² for an L3H3, cuts included. A question or a doubt? Our technical team will answer you.
