VANPOWER SMART KIT - Campervan 12V Electrical Kit (with wiring diagram)
- Victron Smart
- LiFePO4 · 6000 cycles
- ECE R10 • DVLA
- 12V / 230V
- 95 % usable capacity
SMART all-in-one kit for full 12V and 230V independence - Easy to install with the detailed wiring diagram included See more
or 3 × £390.00 interest-free with Klarna
Pay in 3 interest-free instalments: the first when you order, then every 30 days. Subject to approval by Klarna. Choose Klarna at checkout.
- Free delivery
- 30-day returns
- 5-year battery warranty
In stock
Order within – for delivery on – Order today for delivery on –
- 30-day returns: return shipping is at your cost, unless the item is faulty or incorrect.

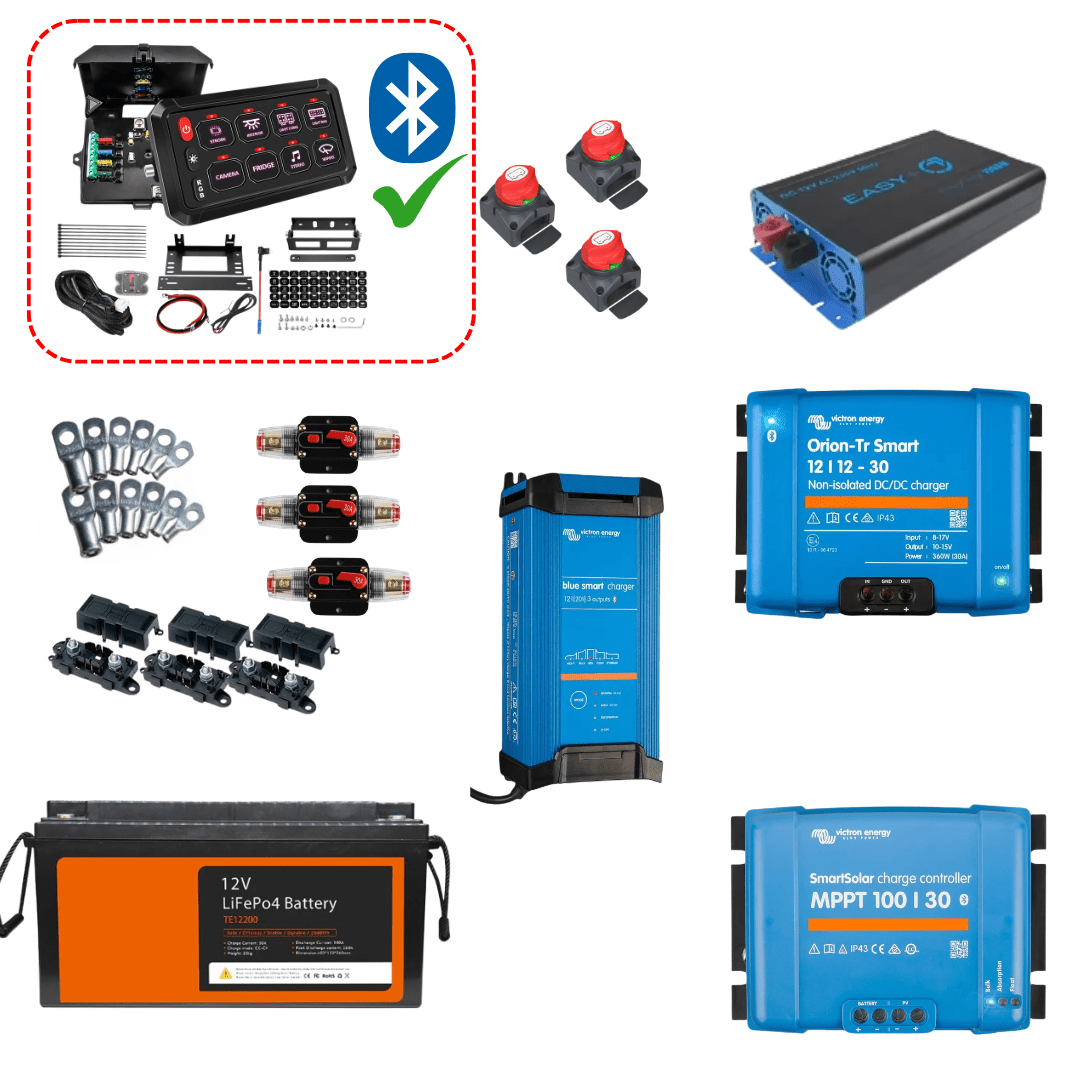

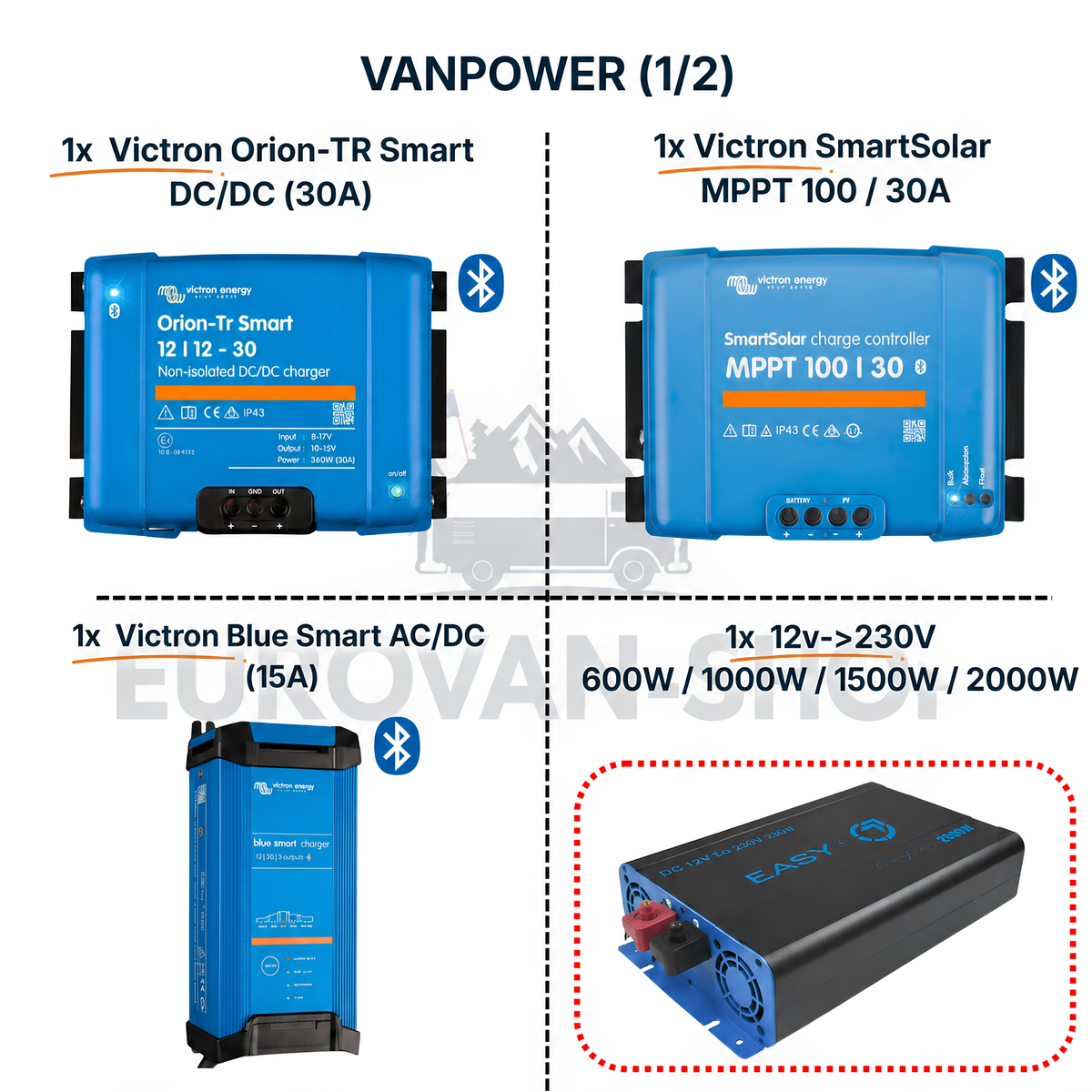

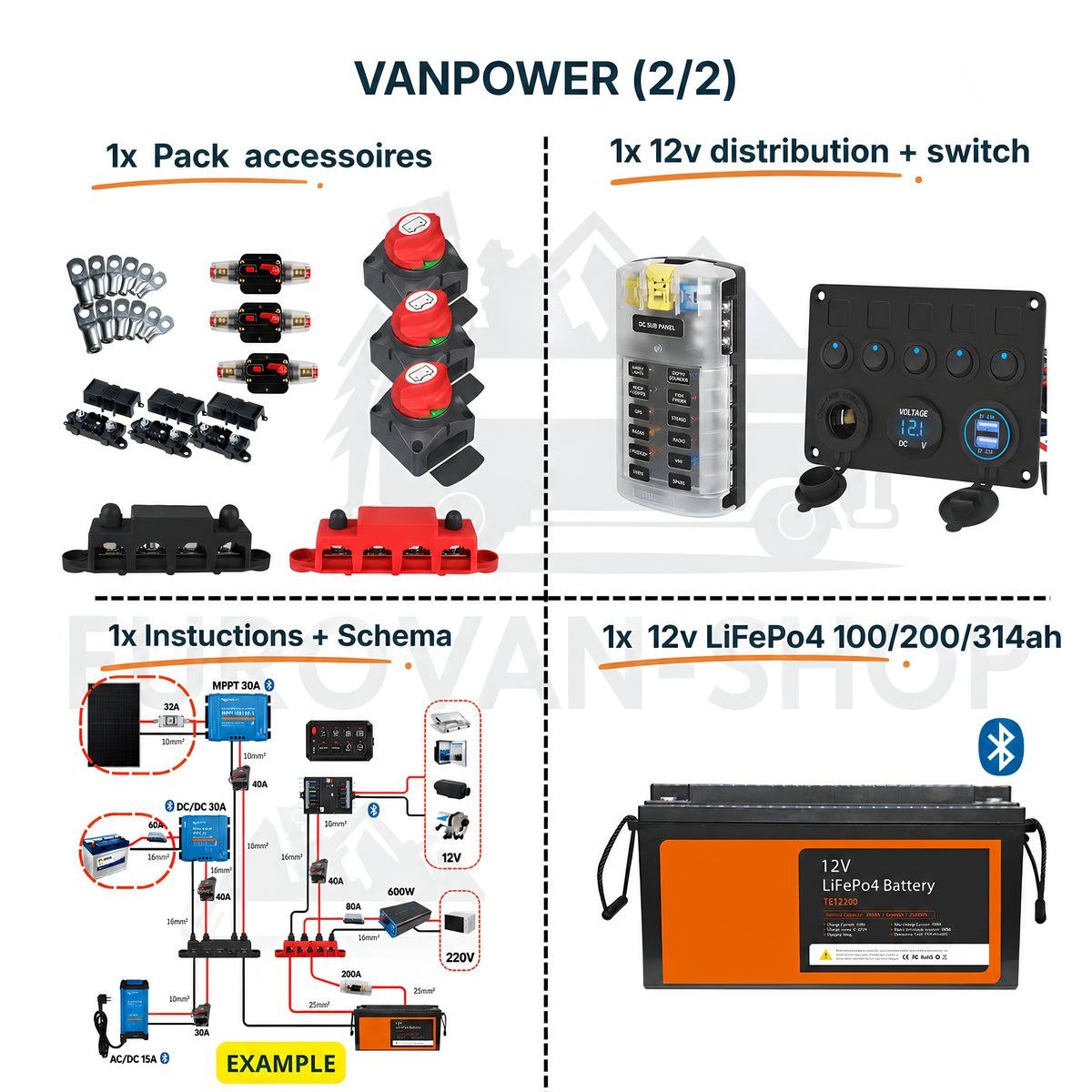

Your kit contains
- 100Ah LiFePO4 battery with Bluetooth – 6000 cycles
- Victron Orion-Tr Smart DC/DC 30A – charges while you drive
- Victron SmartSolar MPPT 100/30 – 300 to 500 W of solar
- Victron Blue Smart 15A mains charger
- No 230V inverter pure sine inverter with 20A charger and automatic bypass
- Connected switch panel and distribution box
- Isolators, bus bars, fuses and lugs, pre-sized
- Wiring diagram with cable sections + step-by-step tutorial
Contact us
Our technical team answers your questions and prepares quotes on every product we sell.
Monday to Friday, 10:00–17:00
Pack discounts
Applied to the whole order total. Enter the code at checkout.
VANPOWER SMART KIT - Campervan 12V Electrical Kit (with wiring diag...
Everything in one box, pre-sized
Genuine Victron chargers, a LiFePO4 battery and the switch panel, matched to each other. Cable sections and fuse ratings are on the diagram.
-

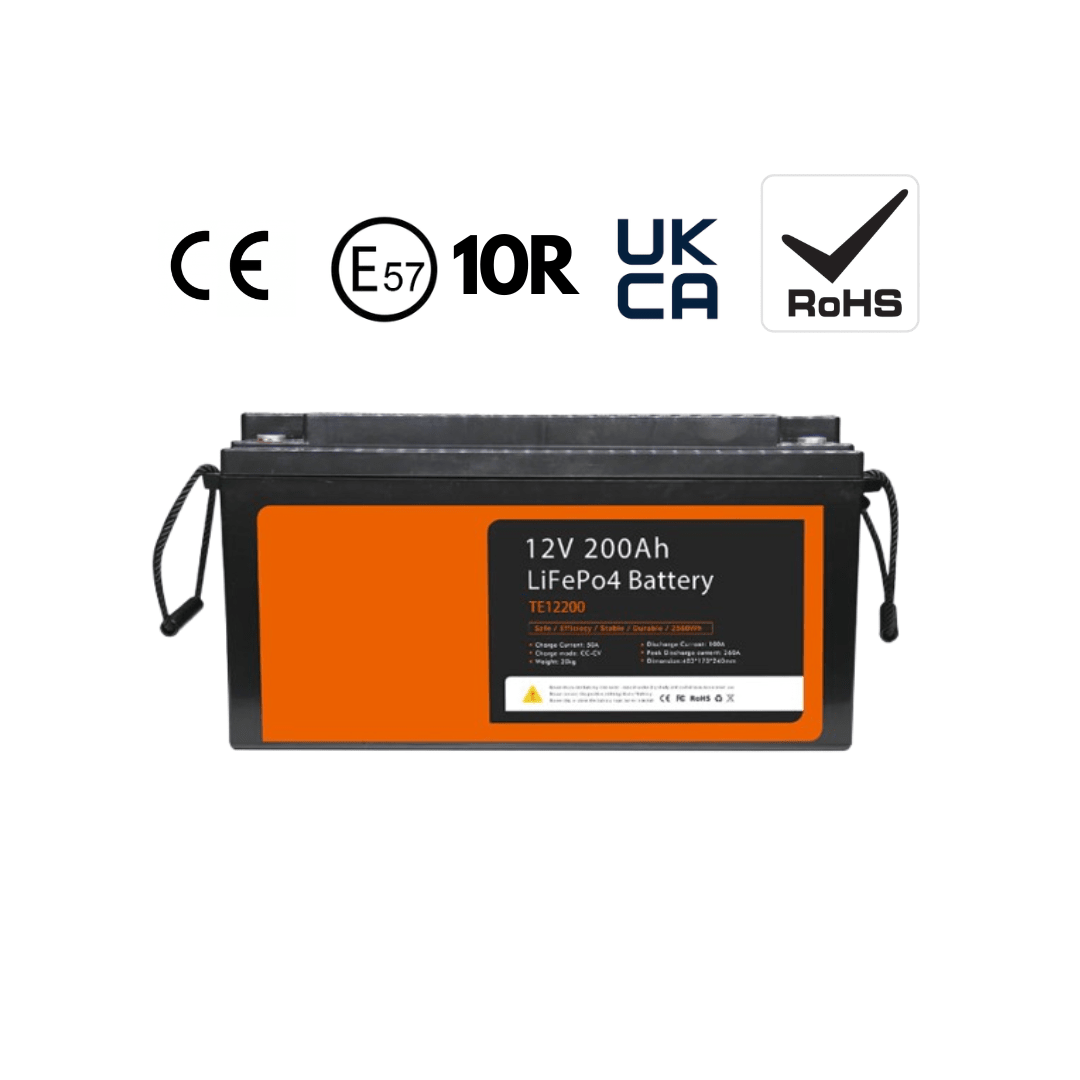

LiFePO4 battery 100 / 200 / 314 Ah
Bluetooth, built-in BMS, 6000 cycles, 5-year warranty
-

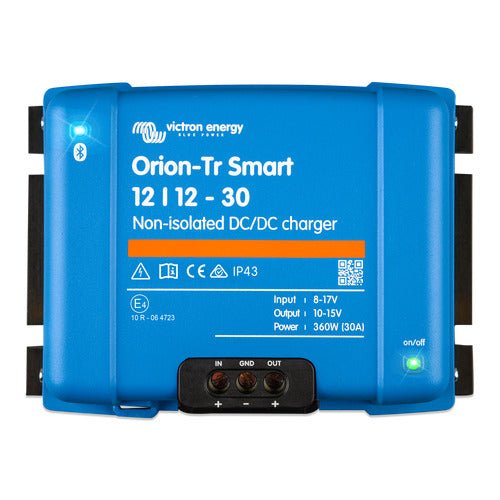

Victron Orion-Tr Smart DC/DC 30A
Charges the battery from the alternator while you drive
-

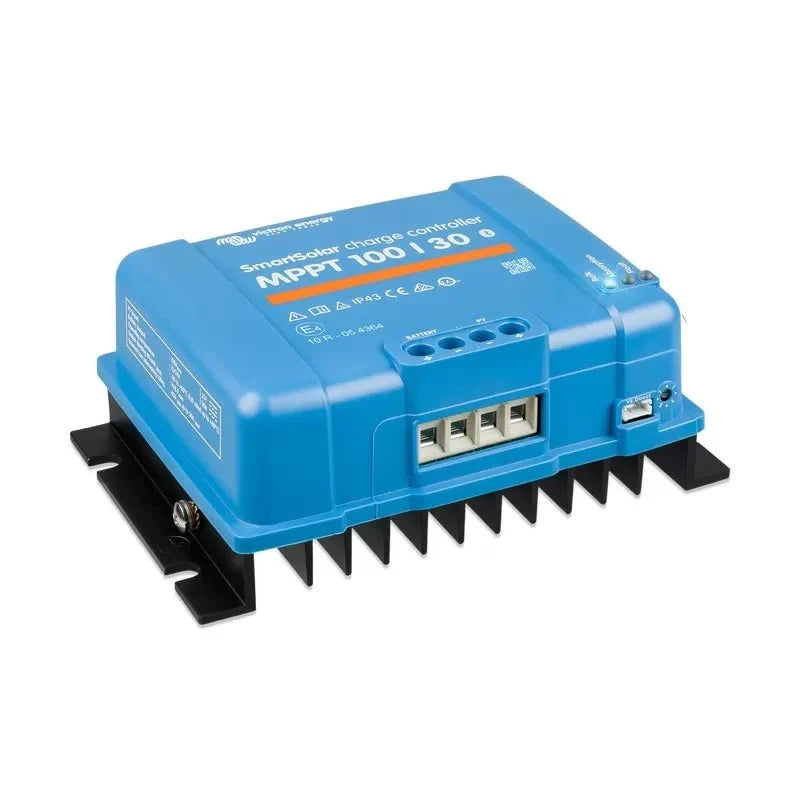

Victron SmartSolar MPPT 100/30
For 300 to 500 W of solar panels
-

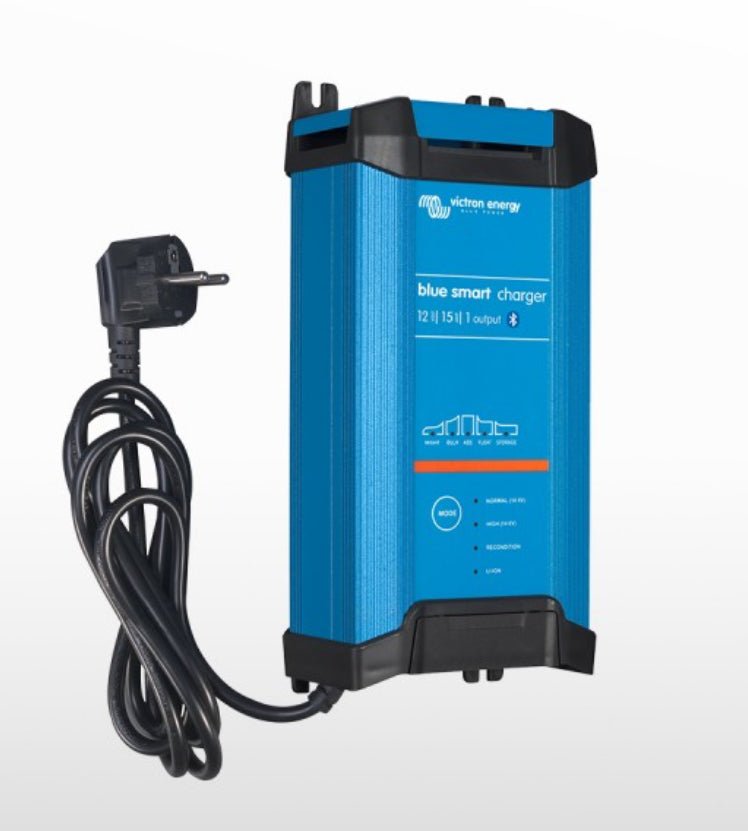

Victron Blue Smart IP22 15A
Mains charging on kits without inverter
-

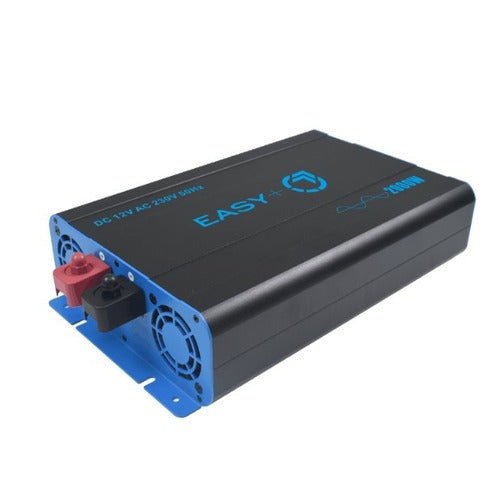

Pure sine inverter 600 to 2000 W
230V sockets, built-in 20A charger and automatic bypass
-

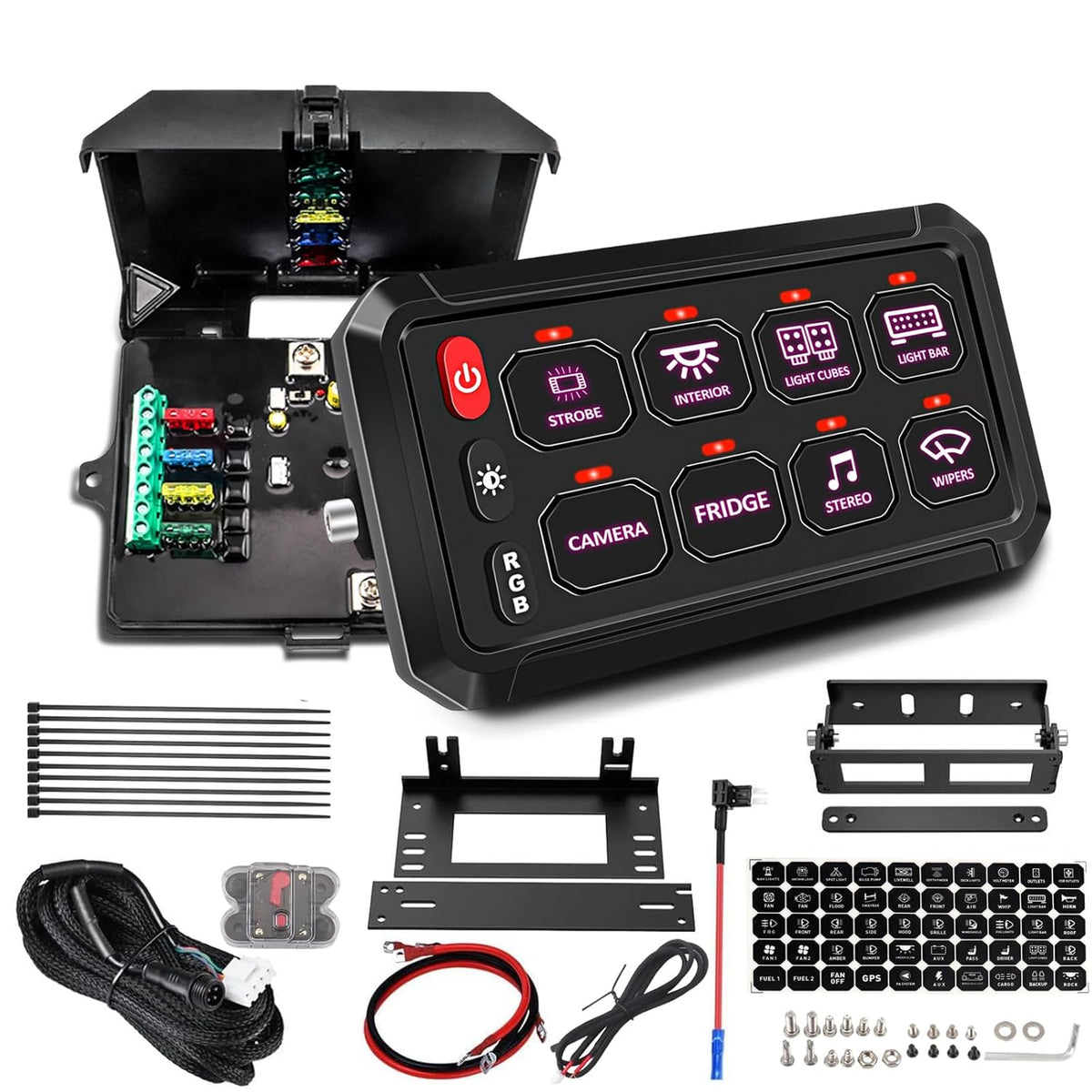

Connected switch panel
Fuse box and switches you control from your phone
Charges from 3 sources
-
Sun
MPPT 100/30 controller, up to 500 W of panels
-
Driving
30A DC/DC charger from the alternator
-
Mains hook-up
15A charger, or the inverter's 20A charger with automatic bypass
Which battery, which inverter?
| Battery | Best for | Dimensions (L × W × H) · Weight |
|---|---|---|
| 100 Ah | Weekends away | 260 × 168 × 209 mm 9.6 kg |
| 200 Ah | Several days off-grid | 483 × 170 × 240 mm 18.5 kg |
| 314 Ah | Full-time van life | 483 × 170 × 240 mm 32 kg |
| Inverter | Typical appliances |
|---|---|
| No 230V inverter | 12V fridge, lighting, USB – you can add an inverter later |
| 600 W | Laptop and small appliances |
| 1000 W | One small appliance: mini-oven or microwave |
| 1500 W | One powerful appliance such as a kettle (314 Ah recommended) |
| 2000 W | Several appliances at once (314 Ah recommended) |
Rule of thumb: take the wattage of your most power-hungry 230V appliance and multiply it by 1.25 to 1.5. An 800 W appliance needs a 1000 to 1200 W inverter.
Install it yourself, with a technician on call

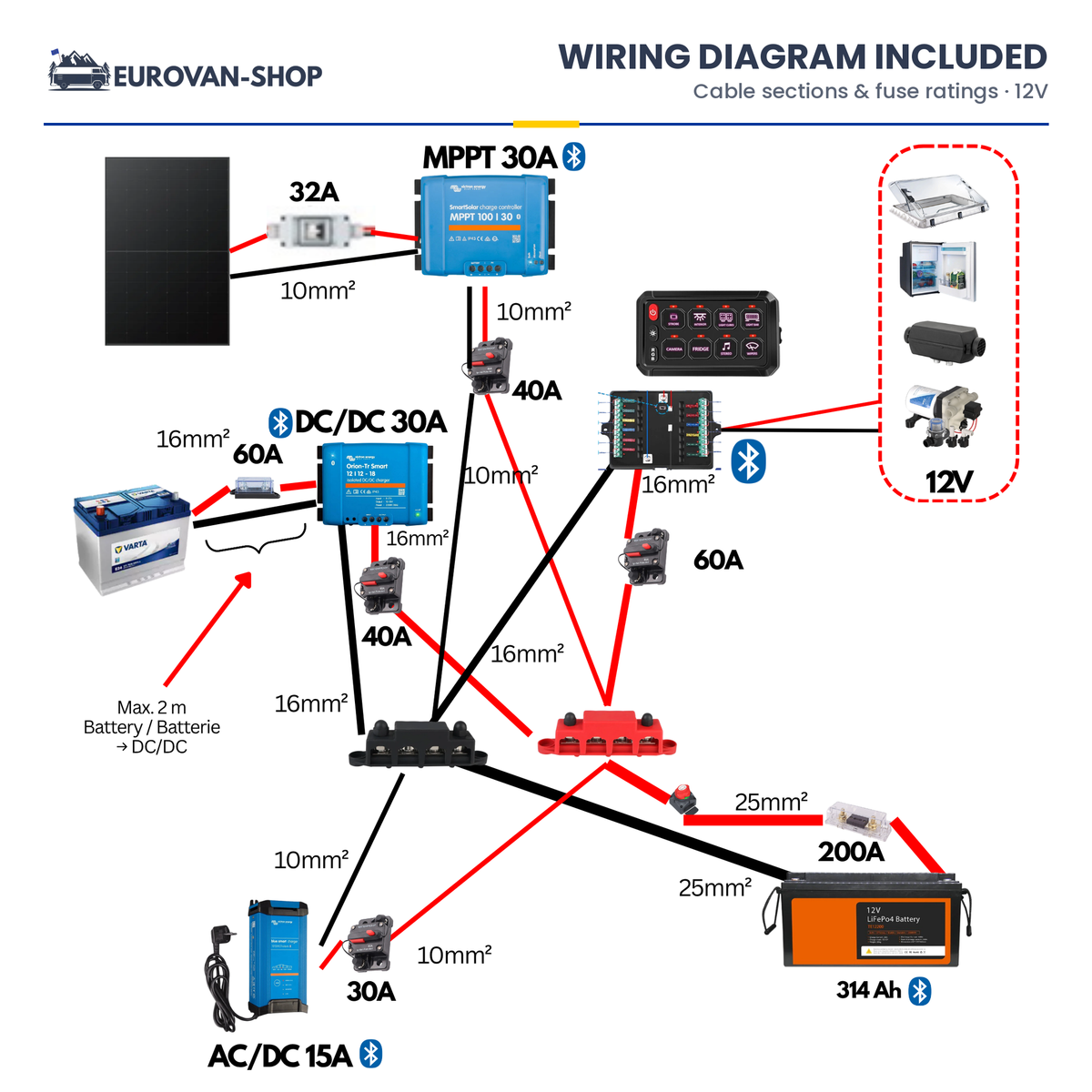

- Detailed wiring diagram with cable sections and fuse ratings
- Step-by-step installation tutorial
- Free technical support throughout your installation
Downloads
Technical specifications
- Battery type
- LiFePO4 Lithium with Bluetooth
- Usable capacity
- 95% (deep-discharge campervan battery)
- Battery cycles
- 6000 cycles
- Battery warranty
- 5 years
- Inverter
- Optional (600 / 1000 / 1500 / 2000 W)
- Charging sources
- Solar (Victron MPPT 100/30) · Alternator (Victron DC/DC 30A) · Mains (Victron Blue Smart 15A, or the inverter's 20A charger)
- Monitoring
- Bluetooth via VictronConnect + SMART switches from your phone
- Certification
- ECE-R10, VASP / TÜV / ITV / DVLA / MFK compatible
- Wiring diagram
- Yes — detailed wiring diagram + step-by-step tutorial
- Technical support
- Included (free during installation)
VANPOWER or VANPOWER SMART?
| VANPOWERfrom £1,080 | VANPOWER SMARTfrom £1,170 | |
|---|---|---|
| LiFePO4 battery 100 / 200 / 314 Ah | ✓ | ✓ |
| Victron chargers: solar, DC/DC, mains | ✓ | ✓ |
| Optional inverter 600 to 2000 W | ✓ | ✓ |
| Switches | 5-gang panel with USB | Controlled from your phone |
Customer reviews
No reviews yet on the SMART version. The VANPOWER kit, with the same battery and Victron chargers, is rated 4.8/5 by 5 customers.
Read the VANPOWER reviews →Questions about the VANPOWER SMART
Which battery should I choose?
100 Ah for weekends, 200 Ah for regular use over several days, 314 Ah for full-time van life or a powerful inverter. Check the space available with the dimensions in the table above.
Do I need 230V?
Only if you use mains appliances (coffee machine, microwave…). Otherwise choose “No 230V inverter”: the Blue Smart charger still charges the battery from a mains socket, and you can add an inverter later.
What is the automatic bypass?
Plugged into mains power (campsite, 230V hook-up), the inverter powers your appliances and recharges the battery at the same time, with nothing to switch.
Can I install it myself?
Yes. Components are pre-sized and the kit comes with a detailed wiring diagram (cable sections, fuse ratings) and a step-by-step tutorial. Our technicians help you for free during the installation.
Is it accepted for conversion approval abroad?
Yes. The components are ECE R10 certified, which is what conversion approval asks for across Europe (e.g. VASP in France, TÜV in Germany, ITV in Spain), in the UK (DVLA, MOT) and in Switzerland (MFK).
I need more than 2000 W (induction hob, air conditioning)?
Contact our team for a custom kit with a more powerful inverter. Contact a technician
Delivery and returns
Free delivery to the UK from £399. You have 30 days to return an unused product in its original packaging.
